Aseptic Sampling Valves - Mrt Process

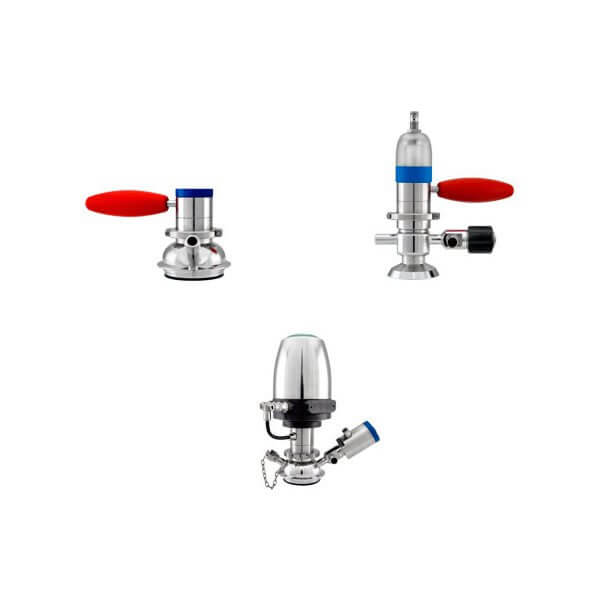

Aseptic Sampling Valves

Aseptic Sampling Valves

KIESELMANN's aseptic sampling valves provide the best functionality in a smooth and ergonomically optimized manner.

This innovative design relies on modular functional modules that can be assembled piece by piece or in combination. It is presented as a simple valve, with a wide range of applications from modular design to automated structure, and offers 5000 different configurations to be modified according to customer needs.

Installation modifications or additional functional additions can be applied only by changing or adding functional modules.

Technical Data

Sizes: DN 25 – 150 (product pipe)
1½" – 4" (product pipe)
Tank fittings
Materials
  1.4404 / AISI 316L
  1.4301 / AISI 304
Seal materials: PTFE-FTM
Product pressure: max. 10 bar
Operating
temperature:		 max. 90° C
applicable for CIP / SIP up to 140° C

Tank & pipeline
connections:

 - Inline clamp connection
- Pipe T-piece DN 25 – 150 / 1½" – 4"
- Tank welding neck
- DN 25 welding neck

Product outlet &
rinsing connection:

 - DN 10
- G 3/8
- Clip-on
- manual / pneumatic steam valve
Actuations:
- manual (spring-loaded)
- manual (self-locking)
- pneumatic
- pneumatic & manual
Automation: - End position feedback
   via inductive sensor
- Control head
Control air: 4 to 6 bar
