Cleaning Technology - Mrt Process

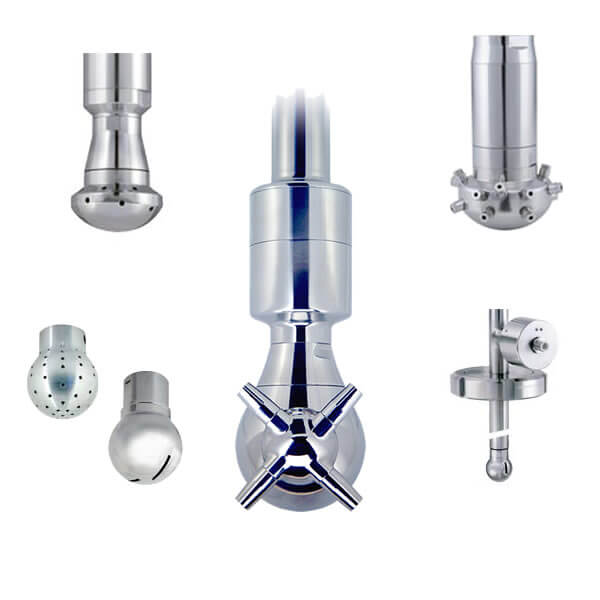

Cleaning Technology

Cleaning Technology

With KIESELMANN's cleaning head design, dead spaces are minimized. Depending on the customer's needs, the performance jet geometries of the cleaners, the number of nozzles, and the rotation speed can be adjusted as required for cleaning. Additionally, the cleaning heads are equipped with highly efficient self-cleaning function. Of course, each cleaning operation can be repeated and confirmed. The heads, produced from top-class materials, have an incomparable surface quality and almost loss-free cross-flow, providing high productivity.

  •  ► FDA
  •  ► GMP
  •  ► EHEDG

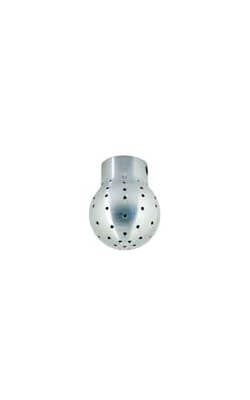

DunosS

Vessel diameter 500 - 4500 mm
Flow at 6 bar
  DS 25 ca. 3,6 m³/h
  DS 50 ca. 5,5 m³/h
  DS 80 ca. 7,5 m³/h
Operating pressure 1 - 50 bar
Operating temperature 5 - 150° C
Standard connections Thread
Split-pin
Welding end
customer-specific
Materials

1.4404 (Standard)
Special materials (optional):
1.4435, PTFE, Hastelloy  ...
Surfaces Ra < 0,8 μm
Certificates ATEX, CE, Material certificate

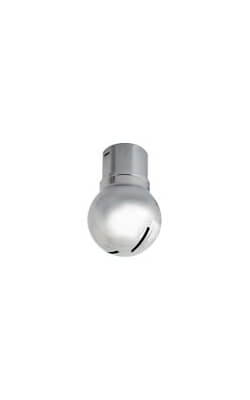

DunosR



Vessel diameter   500 - 7000 mm
Flow at 4 bar
  DR 15     0,4 m³/h
  DR 32     2,6 m³/h
  DR 60     6,6 m³/h
  DR 90   11,7 m³h
Operating pressure 2 - 8 bar
Operating temperature 5 - 95° C
Standard connections Thread
Split-pin
customer-specific
Materials

1.4404
Special materials (optional):
1.4435, 1.4571, PTFE, Hastelloy
Surfaces Ra ≤ 0,8 μm
Certificates ATEX, CE, Material certificate

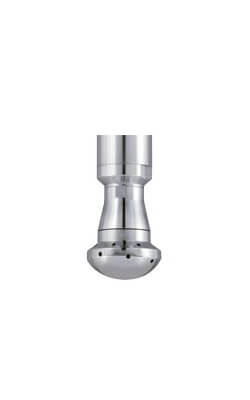

DunosRB

Vessel diameter 200 - 3000 mm
Flow Individual according to requirement
Operating pressure 2 - 12 bar
Operating temperature 5 - 95° C
Standard connections Thread
customer-specific
Materials

1.4404
Special steels (optional):
1.4435, 1.4571, PTFE, Hastelloy ...
Surfaces Ra ≤ 0,8 μm
Certificates ATEX, CE, Material certificate

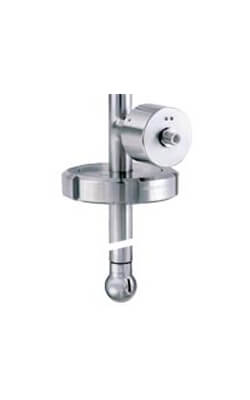

DunosR-VAL

Vessel diameter 500 - 7000 mm
Flow with bar
  DR 15-VAL    0,4 m³/h
  DR 32-VAL    2,6 m³/h
  DR 60-VAL    6,6 m³/h
  DR 90-Val   11,6 m³/h
Operating pressure 2 - 8 bar
Operating temperature 5 - 95° C
Standard connections Thread
Split-pin
customer-specific
Materials 1.4404
Special materials (optional):
1.4435, 1.4571, PTFE, Hastelloy ...
Surfaces Ra ≤ 0,8 μm
Certificates ATEX, CE, Material certificate

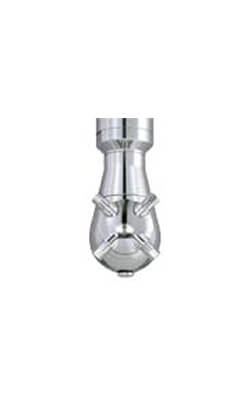

DunosO

TECHNICAL DATA DUNOSO 50
Vessel diameter/
Range		 6000 - 12000 mm
Flow with 8 bar Düsen
  4×2 mm     1,8 m³/h
  4×3 mm     2,5 m³/h
  4×4 mm     6,0 m³/h
  4×5 mm   10,0 m³/h
Operating pressure 2 - 12 bar
Operating temperature 5 - 95° C
Standard connections Thread
customer-specific
Materials 1.4404
Special materials (optional):
1.4435, 1.4571, Hastelloy ...
Surfaces Ra ≤ 0,8 μm
Certificates CE, Material certificate, further certificates on request
  TECHNICAL DATA DUNOSO 90
Vessel diameter/
Range		 bis 20000 mm
Flow with 8 bar   4×5 mm     10 m³/h
    4×6 mm     13 m³/h
    4×7 mm     17 m³/h
    4×8 mm     19 m³/h
  4×10 mm     22 m³/h
Operating pressure 2 - 12 bar
Operating temperature 5 - 95° C
Standard connections Thread
customer-specific
Materials 1.4404
Special material (optional):
1.4435, 1.4571, Hastelloy ...
Surfaces Ra ≤ 0,8 μm
Certificates CE, Material certificate, further certificates on request
TOP
