Basco PLAC (Pipeline After Cooler) and its auxiliary separator provide an ideal combination for recovering excess moisture and grease in compressed air streams. The Aftercoolers/separators feature proven performance of devices and equipment operating with air worldwide, ensuring trouble-free operation.

Performance Notes

• * PLAC tubes are arranged to maximize heat transfer at a higher level and reduce the use of cooling water.
• * The detachable tube bundle facilitates tube and shell edge cleaning simultaneously, reducing future maintenance costs.

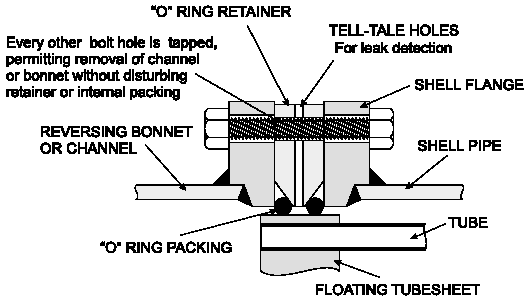

• * The double-packed floating tube surface with the "O" ring allows for expansion and contraction without the dangerous tension and mixing of side tube flows and tube bundles.
• * Extinguishing holes enable easy visual detection of leaks.
• * The cast iron moisture separator provides maximum productivity for capturing almost any particle across the operating range.
• * Separators are designed to bolt directly into the need of coils, minimizing pressure drop and overall length.
• * To accommodate various materials and codes requirements, standard operating pressures range from 75 to 150 PSI; for special applications, units are available for use up to 300 PSI.

Features

• * Dimensions: Diameter between 3" and 16"; length between 6' and 10' 10-1/4'
• * Shells: Carbon steel
• * Tubes: Available in 3/8" or 5/8" diameter Tube and
• * Tube Sheet: Tube plate configuration
• * Baffles: Precision-perforated carbon steel or brass
• * Heads: Not applicable Flow: Can only be used in 1-pass designs
• * Certifications: ASME
