SIGMA T-Series

SIGMA T-Series

The plate gap is over 4 mm.
Suitable even for liquids containing larger particles and pulps.
Steam evaporation in all industrial fields.
A wide range of choices for plate materials and gaskets.

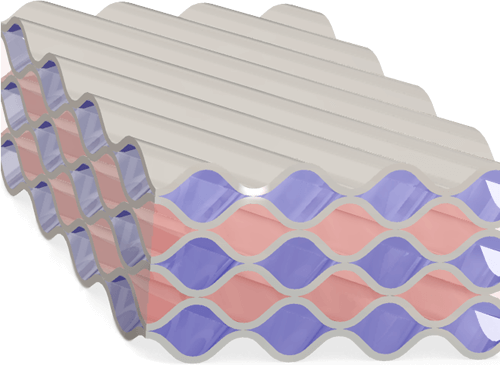

T-type corrugation

W-type corrugation

Technical information

Plates: Description:

Technical Data:
Standard: AISI 304 (1.4301)
  AISI 316 L (1.4404)
  AISI 316 Ti (1.457 )
Special: AISI 904 L (1.4539)
  SMO 254 (1.4547)
  Nickel alloys
  Titanium
  Titanium-Pd

Operational Parameter:
Temperature: -40°F to 400°F
Pressure: Vacuum to 240 psig
Capacity: 5 to 3400 GPM
Connections: 4” to 8”-NPT ,
Studded,
Flanged,
others

Gaskats: Description:
Standard: Nitrile, EPDM, EPDM-HT, Chloropren
Special: H-NBR, NBR-HT, Viton, Butyl
Fixing: Glued on

Frame: Description:
  Painted Carbon Steel
Stainless Steel

Connections: Description:
Standard: AISI 316 Ti (1.4571)
Rubber liners
Special: Nickel alloys, Titan, Titan-Pd

Codes: Description:
  PED, ASME, ABS, LRS, GL, BV
