Type 500
Type 500

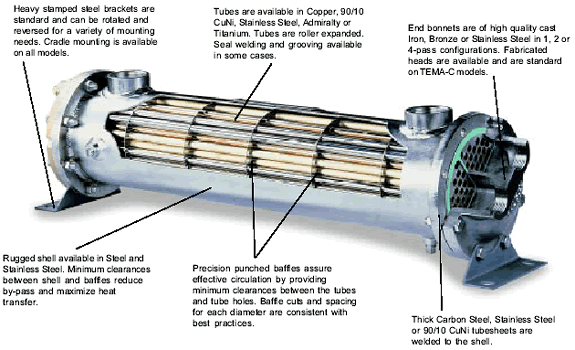

Our Basco Type 500 continues to set the industry standard for ultimate value and long-term reliability. This established fixed tubesheet shell and tube heat exchanger offers the cost-effectiveness that comes with a highly standardized design, while also easily accommodating various options to meet specific customer requirements.
PERFORMANCE NOTES
- * Pre-engineered components
- * Many readily available designs
- * Available in straight tube or u-tube bundles; removable and non-removable
FEATURES
| Sizes: |
3" to 12" diameter; 14" to 120" length |
| Shells: |
Carbon Steel or 304 Stainless Steel |
| Tubes: |
1/4", 3/8" or 5/8" diameter tubes available in Copper, Admiralty, 90/10 CuNi, or 304 S/S. Straight tube or U-Tube configurations |
| Baffles: |
Precision punched Carbon Steel, Brass or 304 S/S |
| Heads: |
Cast heads available in iron, 304 S/S, or bronze; Fabricated heads available in Steel, 304 S/S, or 90/10 CuNi. |
| Flow: |
Available in 1-pass, 2-pass, and 4-pass designs |
| Codes: |
Commercial Standard (non-code), ASME, TEMA-C |
Basco Tip 500
Our Basco Type 500 heat exchangers are manufactured at our ISO 9001 certified facility in Buffalo, NY, as well as our facility in Suzhou, China. We implement Technology Flow Demand (TFD) production processes tailored to the specific needs of our customers, with support processing centers integrated into the production line for finished products. We have heavily invested in TFD, ensuring high-quality controls, developed workflow processes, and cost-effective TFD production.
