Welded Plate Heat Exchangers
Welded Plate Heat Exchangers
All our welded heat exchangers PLATECH Schmidt are durable and cost-effective devices, the most compact in heat transfer in several industrial applications, featuring laser-welded plates. They have a structure similar to gasketed heat exchangers. Welds are made on the plates instead of joints.

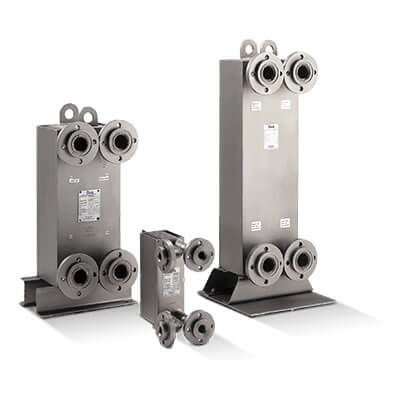

SIGMAWIG
Fully Welded Heat Exchangers
With the fully welded plate pack, it provides extraordinary corrosion resistance. Inside, there is an O-ring type seal. Platech heat exchangers feature corrugated plates that significantly promote turbulent flow in a countercurrent direction. It has a compact design. Due to smaller dimensions and reduced material content, Platech welded plate heat exchangers provide maximum heat transfer and cost advantage.

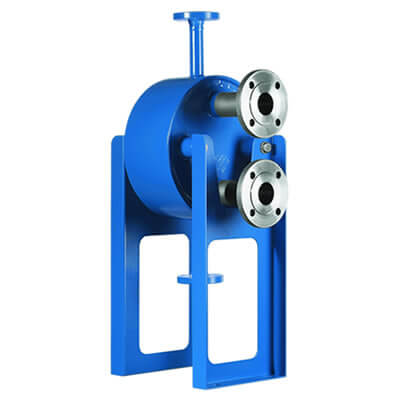

SIGMASHELL
All-Welded Plate & Shell Heat Exchanger
Sealless and with a heat transfer surface area up to 700 m2, our SIGMASHELL laser-welded plate and shell heat exchangers are ideal for the thermal treatment of liquids, vapors, and gases. SIGMASHELL is applicable in all industrial sectors, including chemical and petrochemicals, pharmaceuticals, renewable energies, bioenergy, power generation, pulp and paper, steel mills, and coking plants.

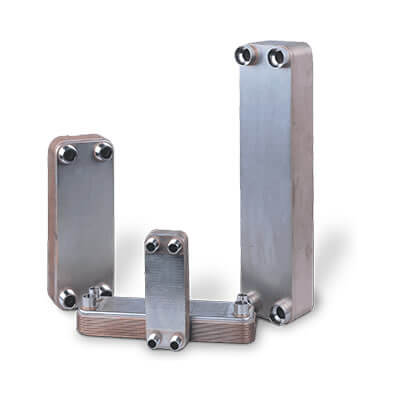

BRASED
Fully Welded Heat Exchangers
Brazed plate heat exchangers represent the most compact, durable, and cost-effective devices in heat transfer for various industrial, process, and cooling applications. They are made from brazing materials such as copper and 316 stainless steel, providing extraordinary corrosion resistance. Due to their smaller dimensions and reduced material content, they can be the most economical choice for heat transfer.
